Setting up the Bluetti PV200 Solar Panel

I have found a method to unfold the PV200 panel which is quick and easy, with a minimum of cursing.

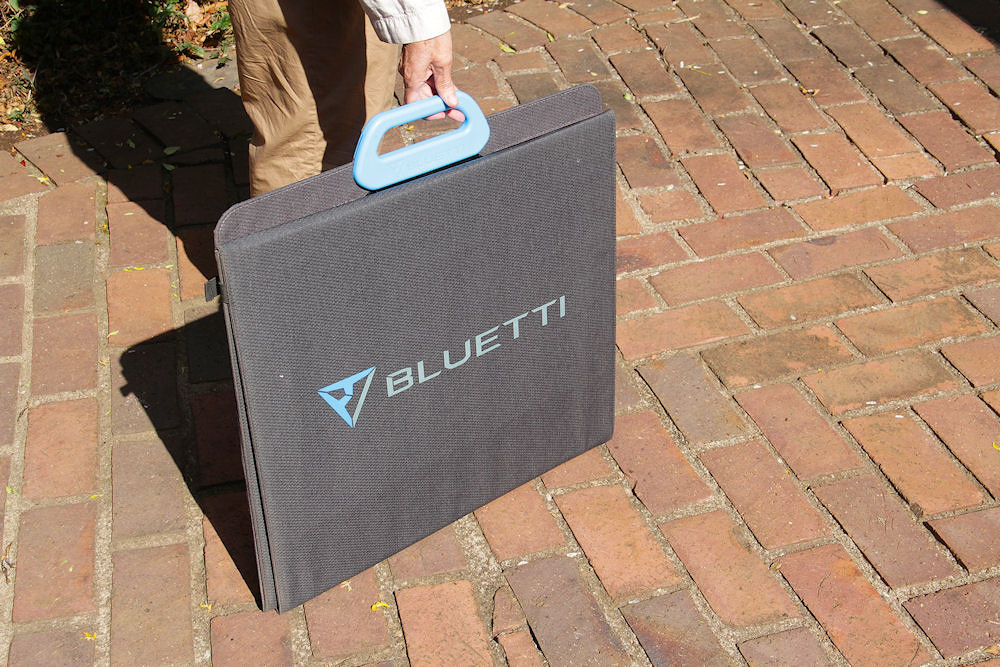

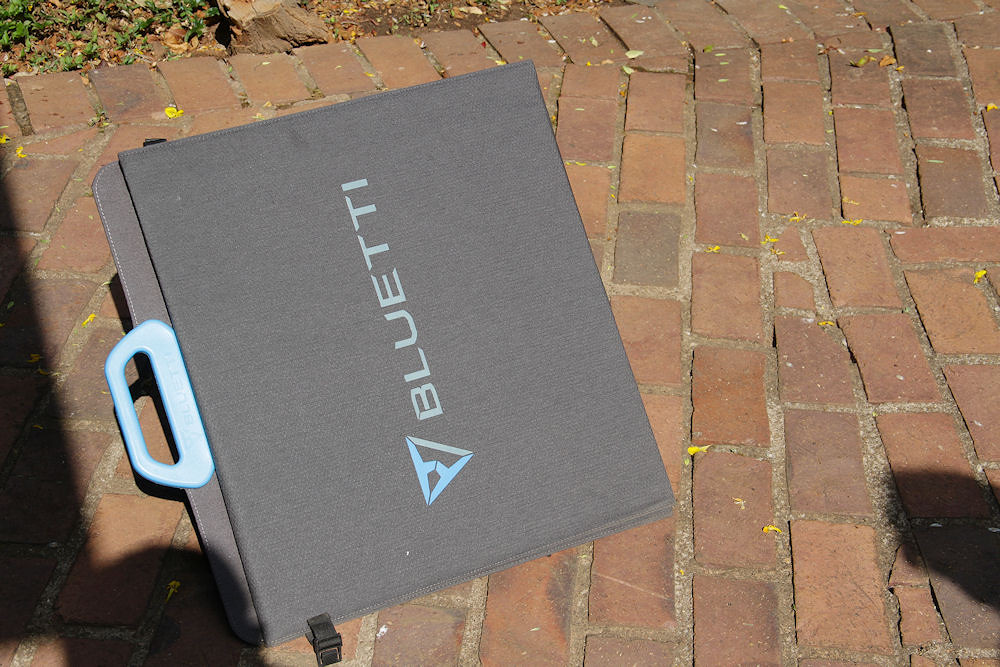

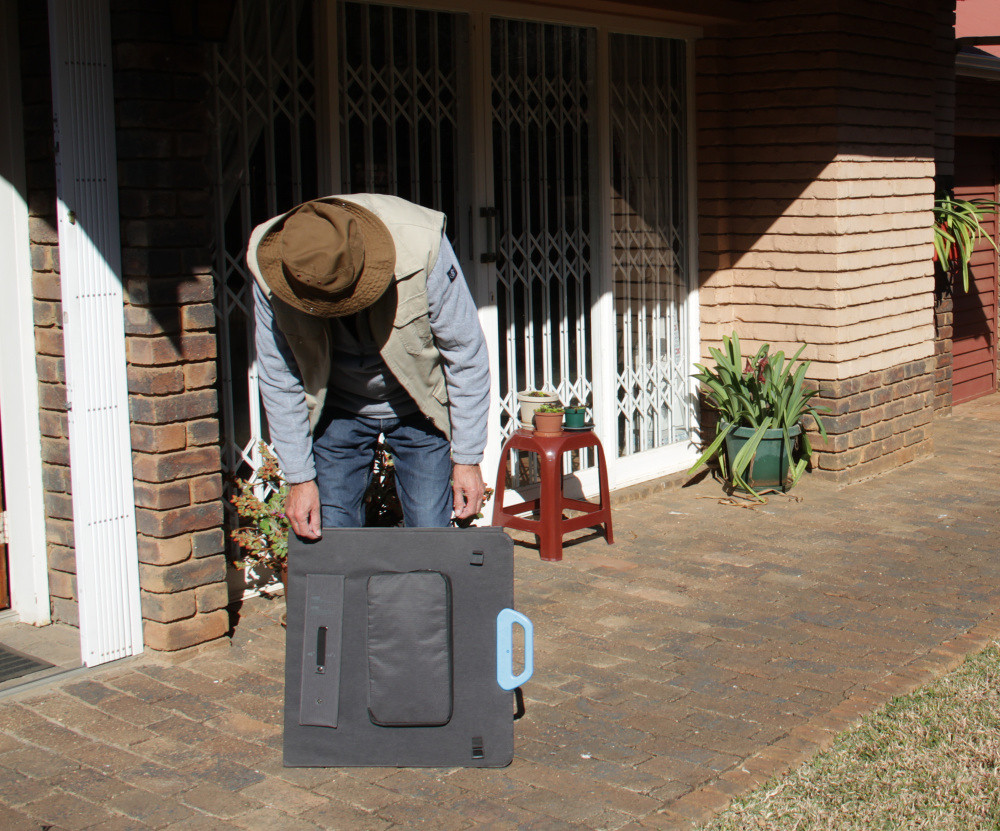

First, you need to get your orietation right - face towards the sun and unfasten the clips. Now place the panel with the Bluetti emblem against your legs so the first section will fold to the right (the handle will be on your left).

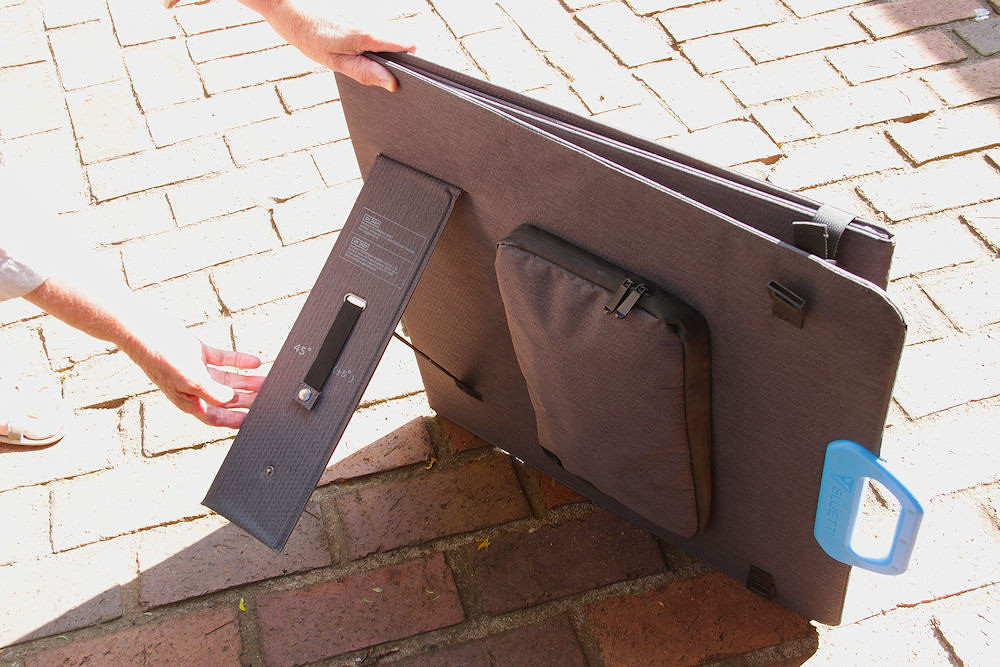

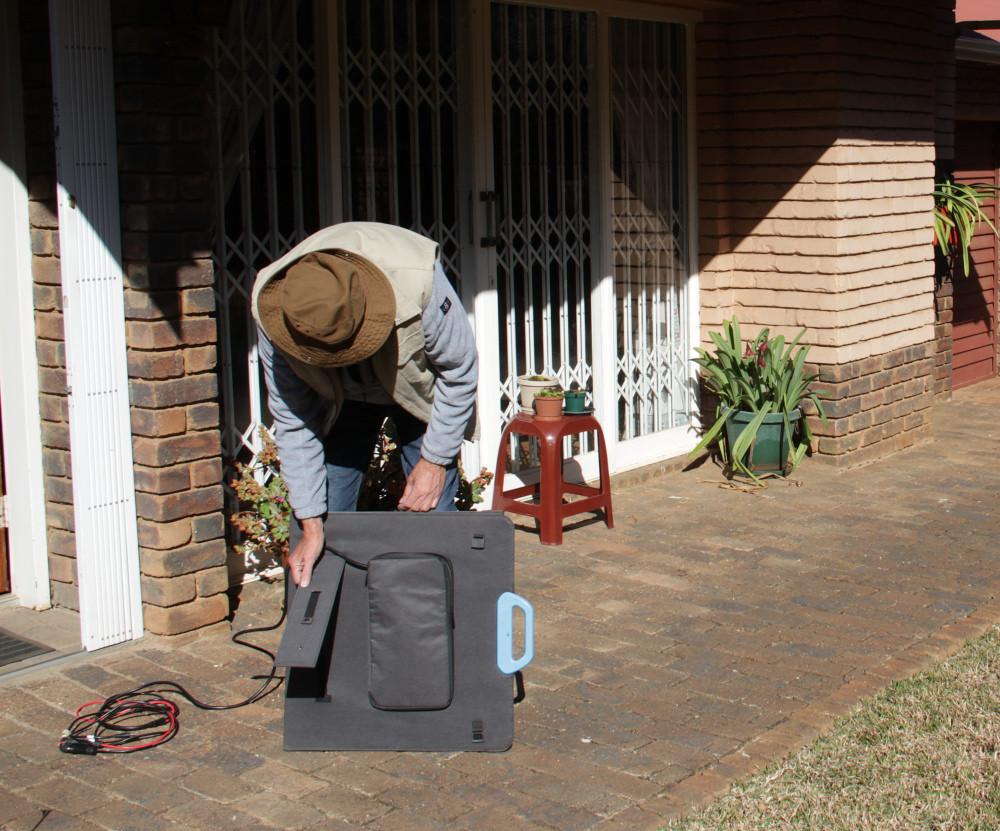

Remove the cable from its bag and unfasten the stand on the first section (I normally leave this stand set at my preferred elevation, as it is not in contact with any solar cells).

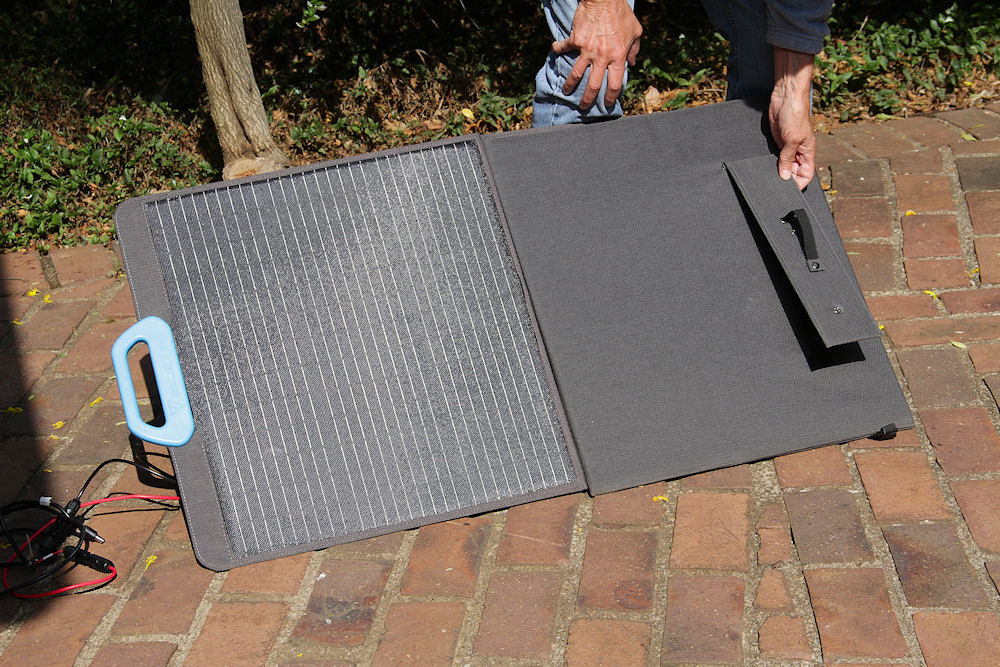

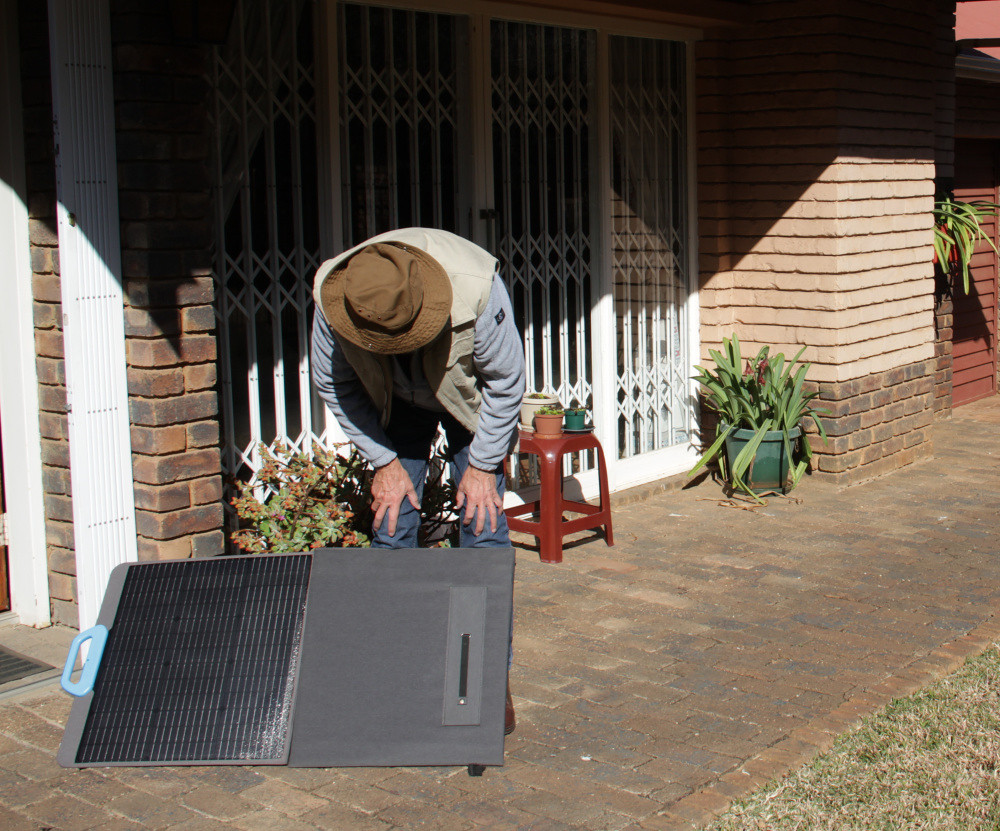

Now open the first section with the second section still resting against your legs.

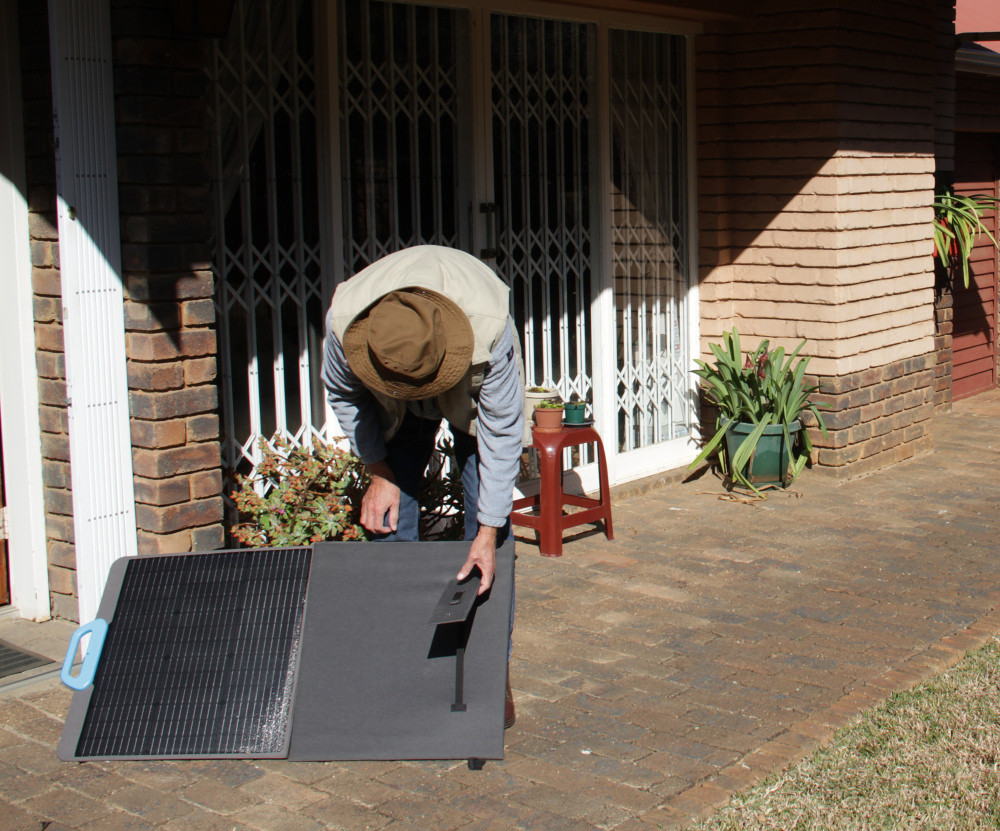

Set the third section's stand to the required elevation and detach it from the velcro.

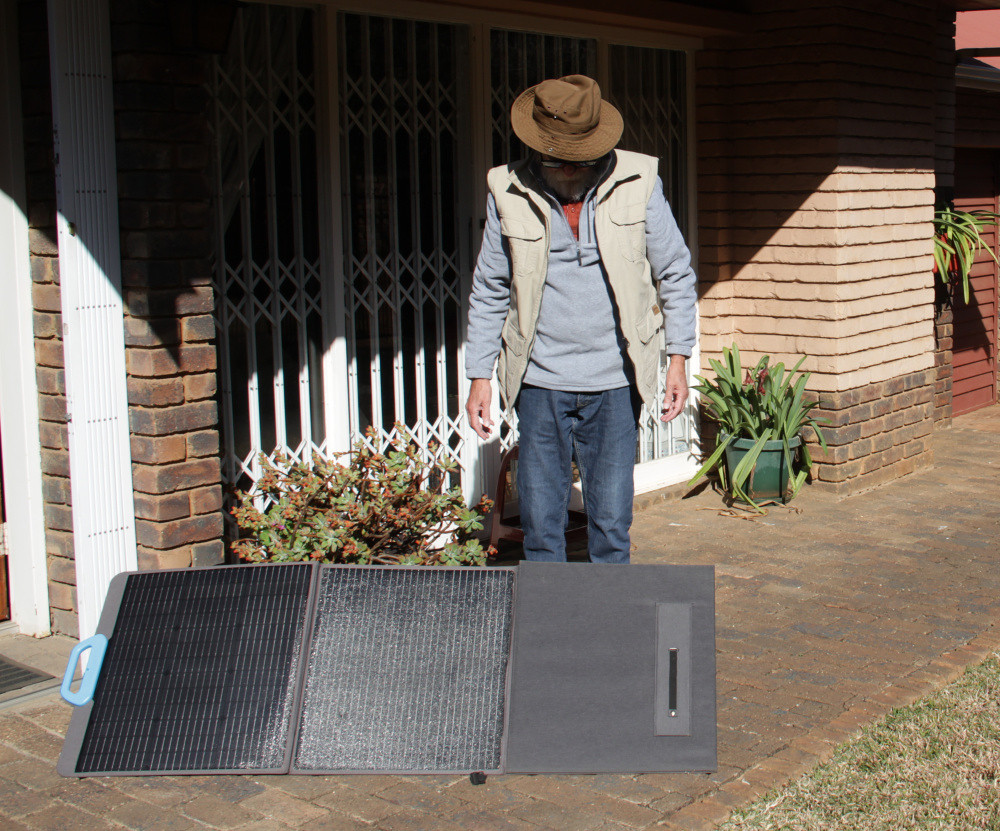

Now open the third section. The panel is now standing without your support.

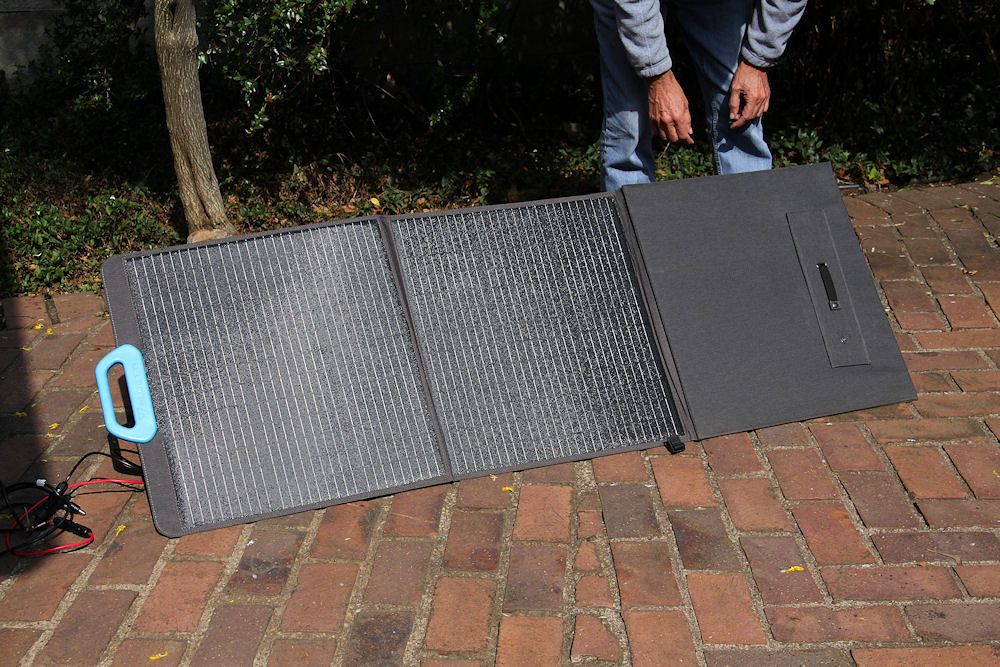

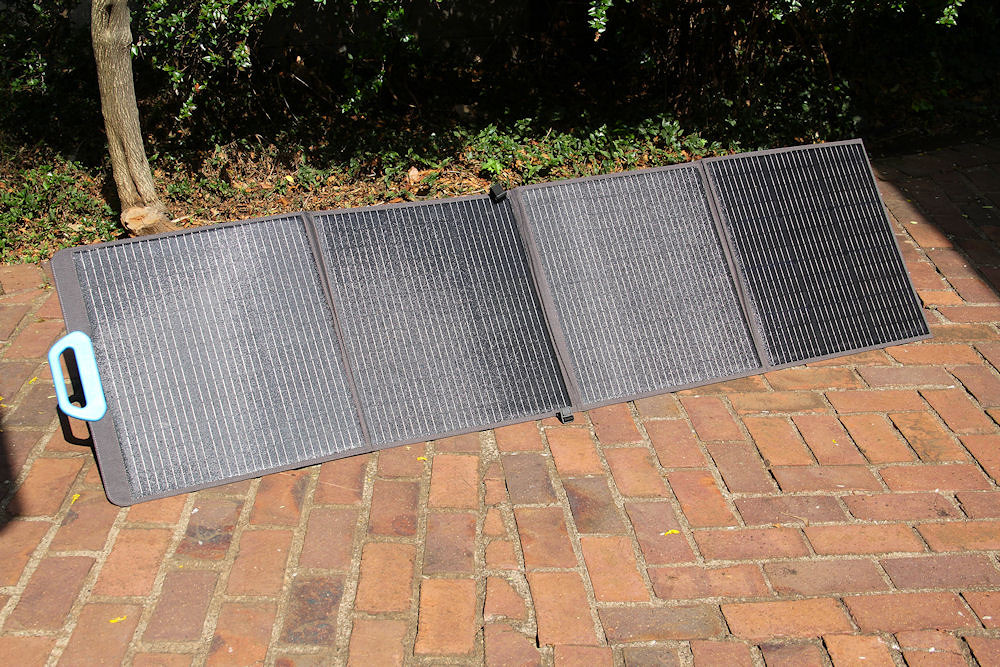

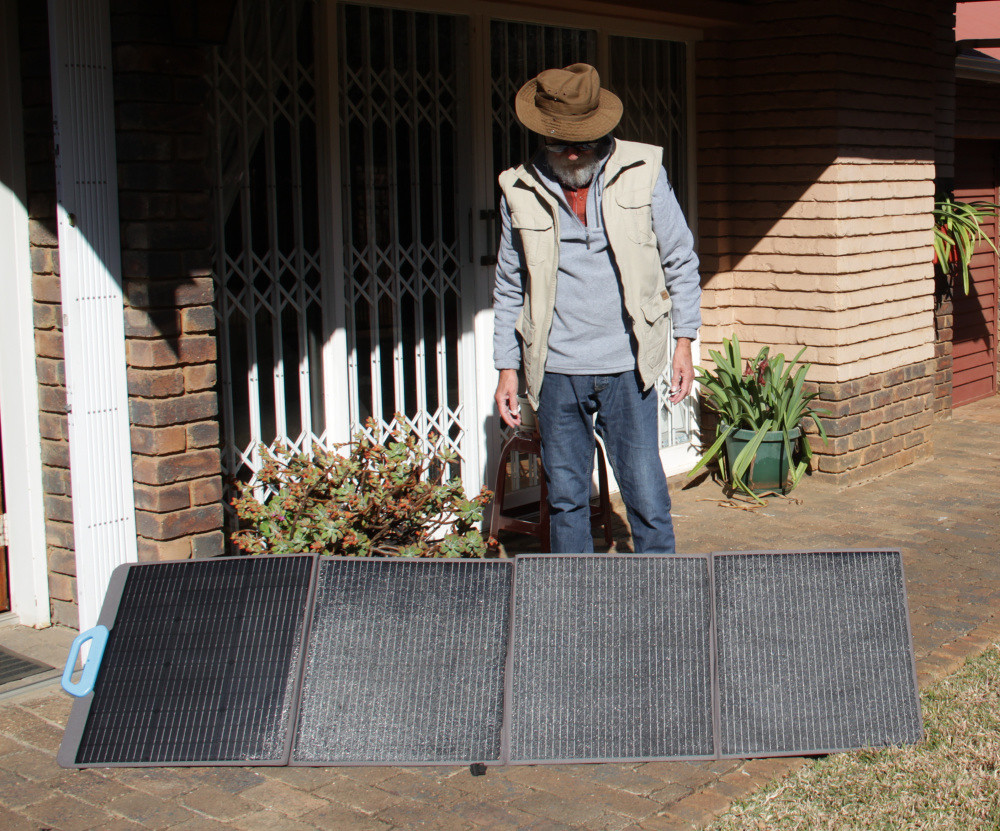

Repeat the previous step to open the fourth section.

To close the panel, reverse the process - remember to set the elevation adjustment clips to their zero positions as you want a minimum of metal in contact with a section's face.

(updated: 15 July 2026)
